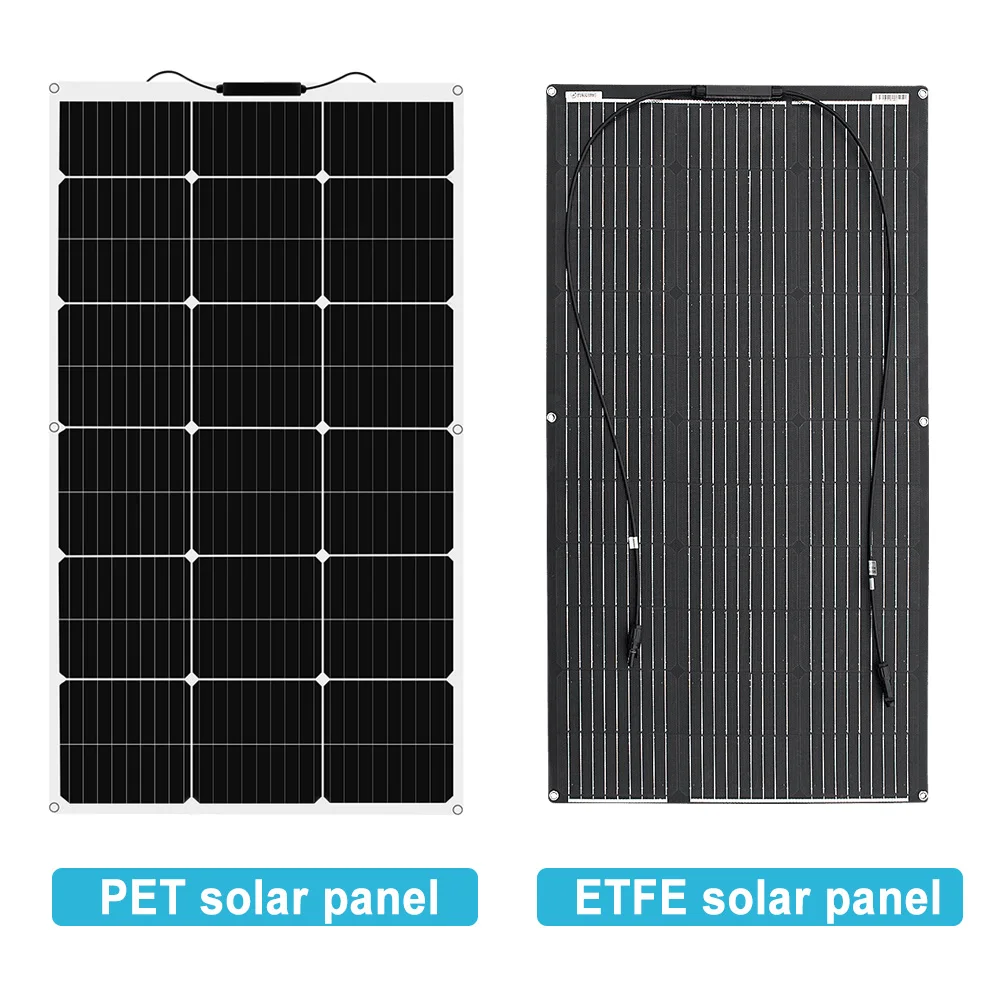

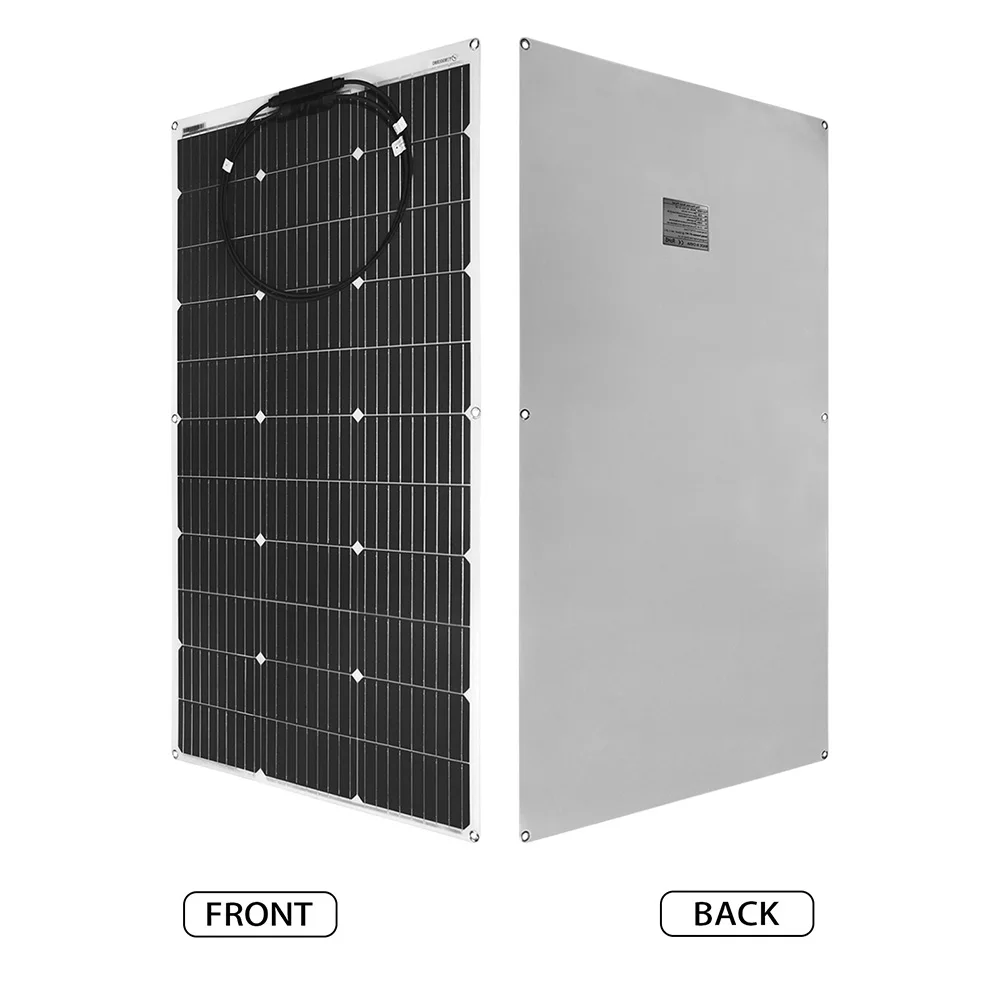

Color: ETFE 100W panel

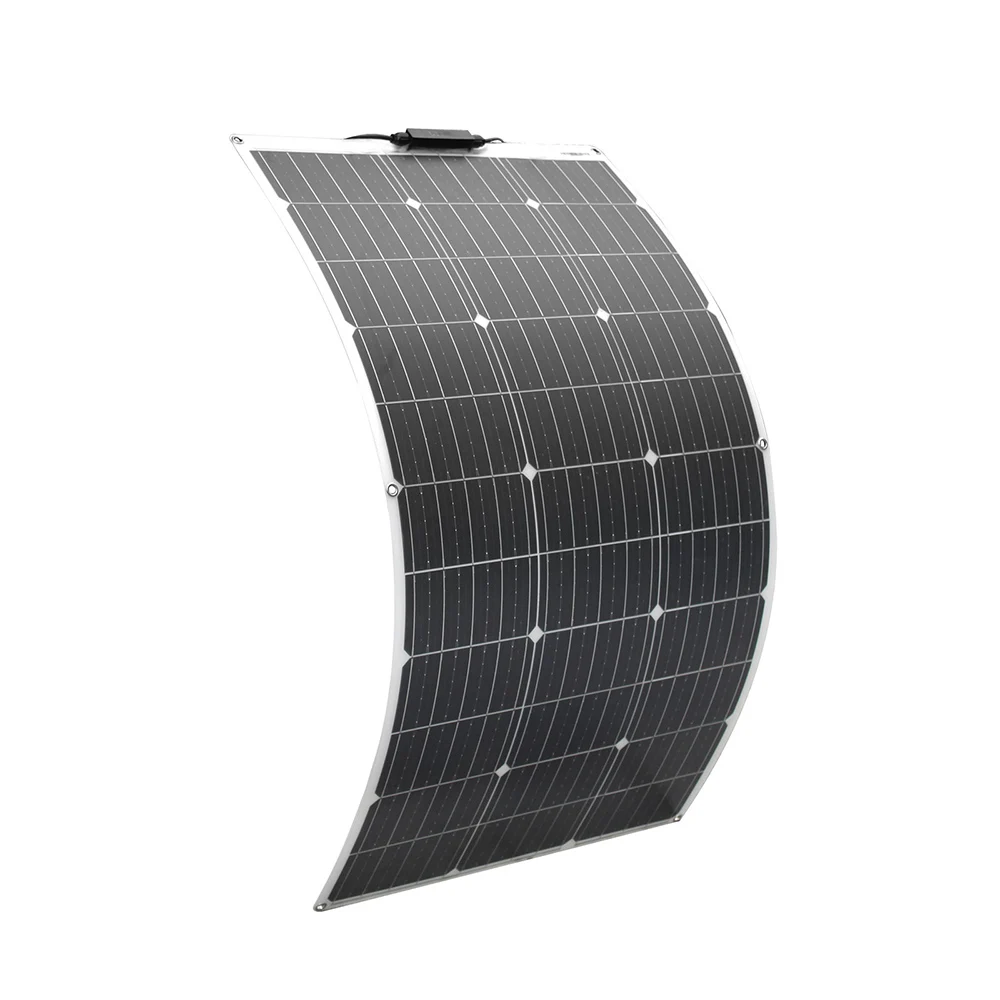

PET solar panel 100w:

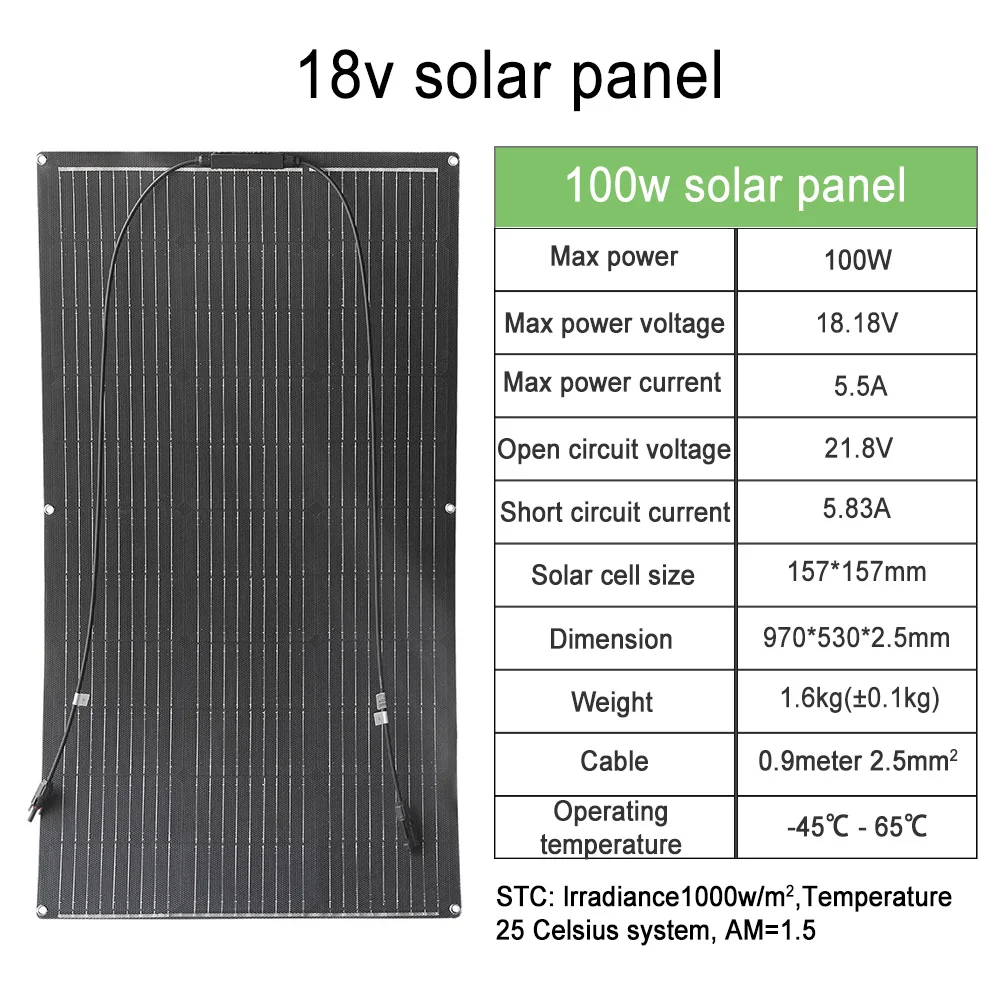

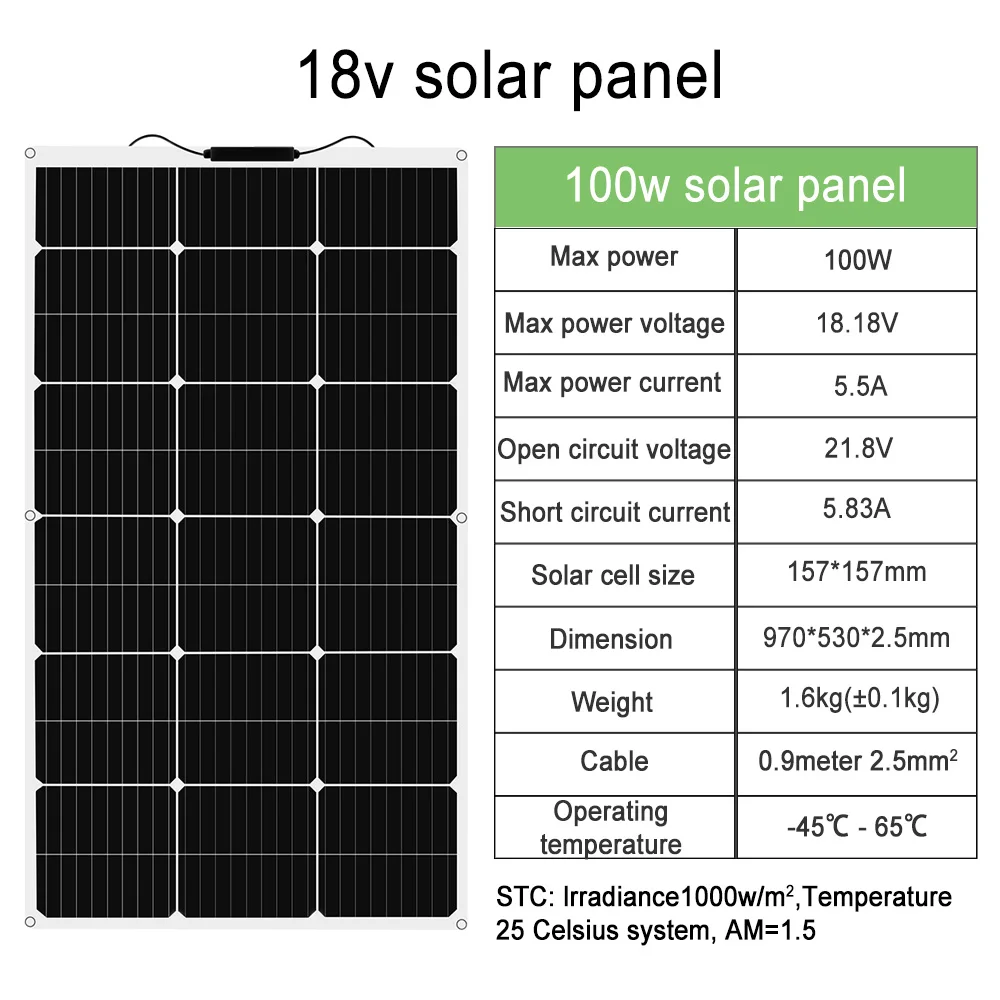

Electrical Characteristics
Max Power 100 W
Max Power voltage 18.18 V
Max Power Current 5.5 A
Open Circuit Voltage 21.8 V
Short Circuit Current 5.83 A
Number of cells in Series 33
Cell size 157X157 mm
Mechanical Characteristics

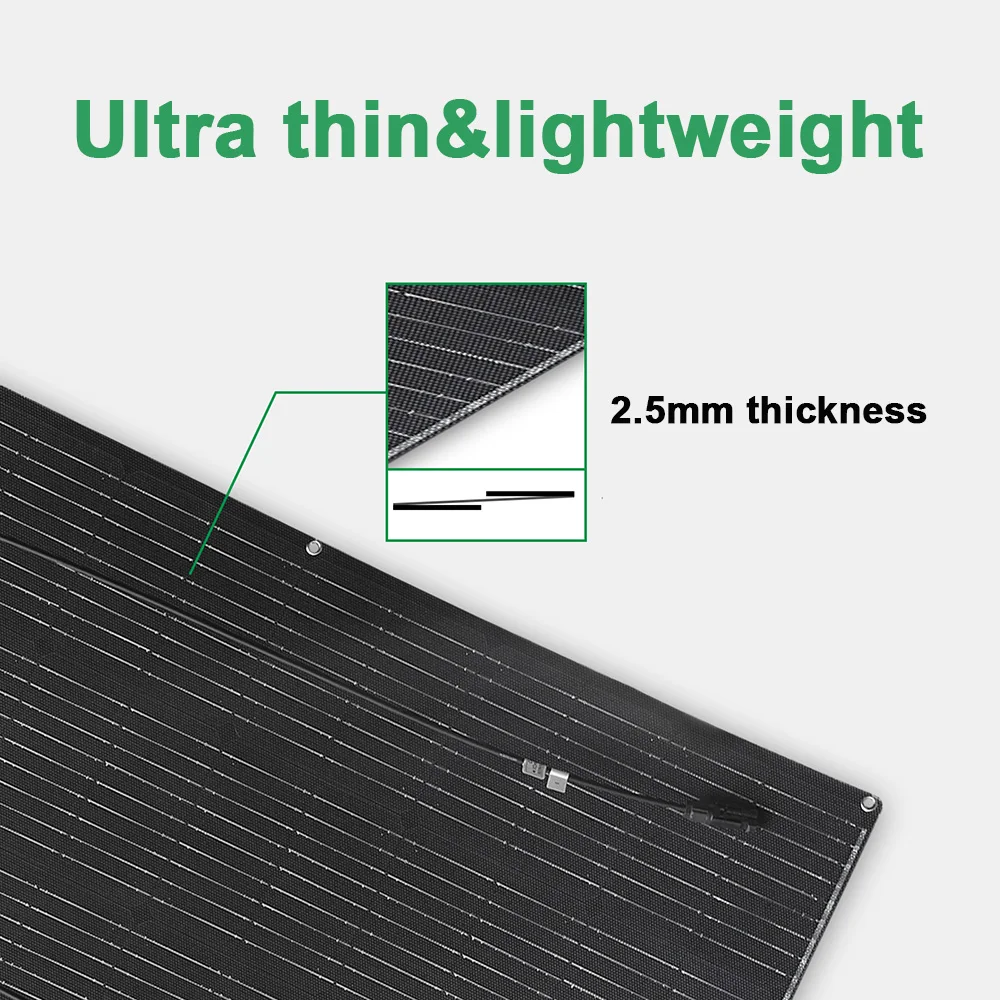

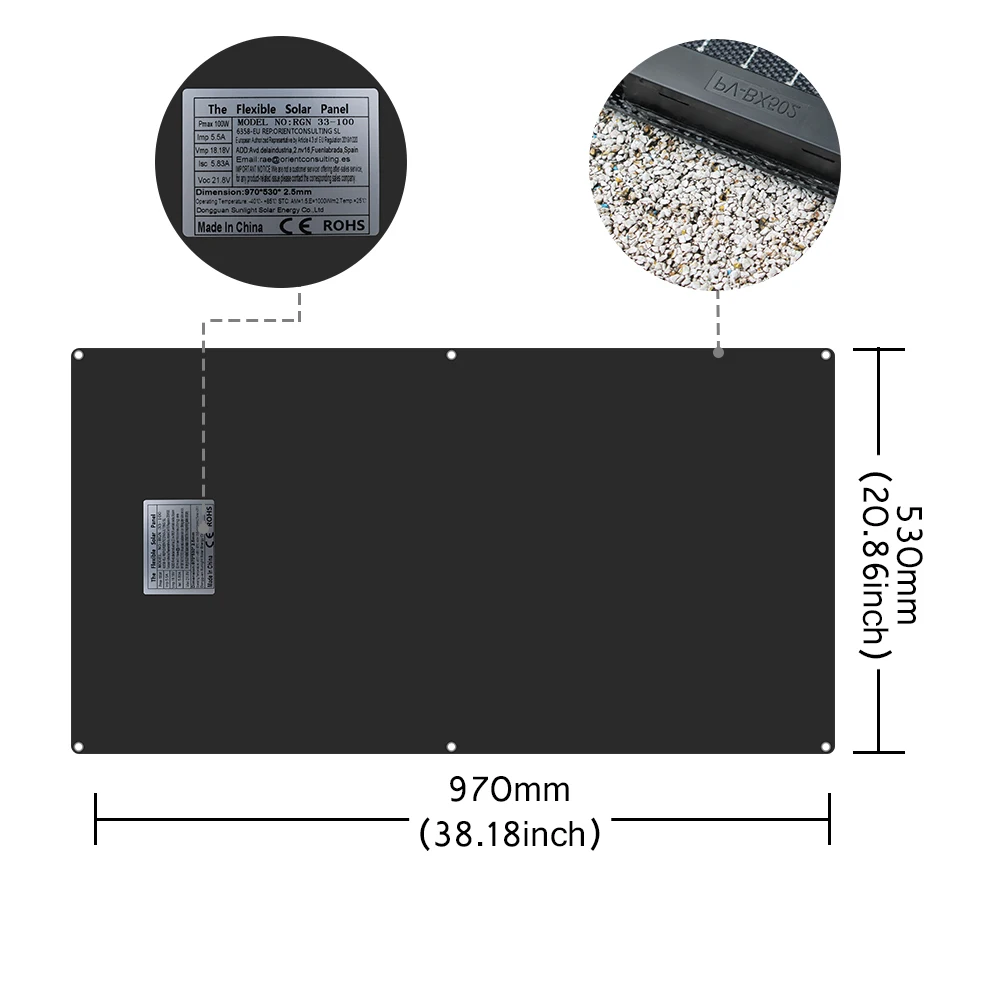

Dimension 970X530X2.5mm
Weight 1.6kg（±0.1kg）
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃
Solar panel packing list
100w solar panel= 1pcs 100w 12v flexible solar panel（solar panel only）
200w solar panel= 2pcs 100w 12v flexible solar panels（solar panel only）
300w solar panel= 3pcs 100w 12v flexible solar panels（solar panel only）
300W solar panel system packing listing
3*100W solar panel
1 *3 in 1 adapter
1*12V/24V 30A solar charger controller

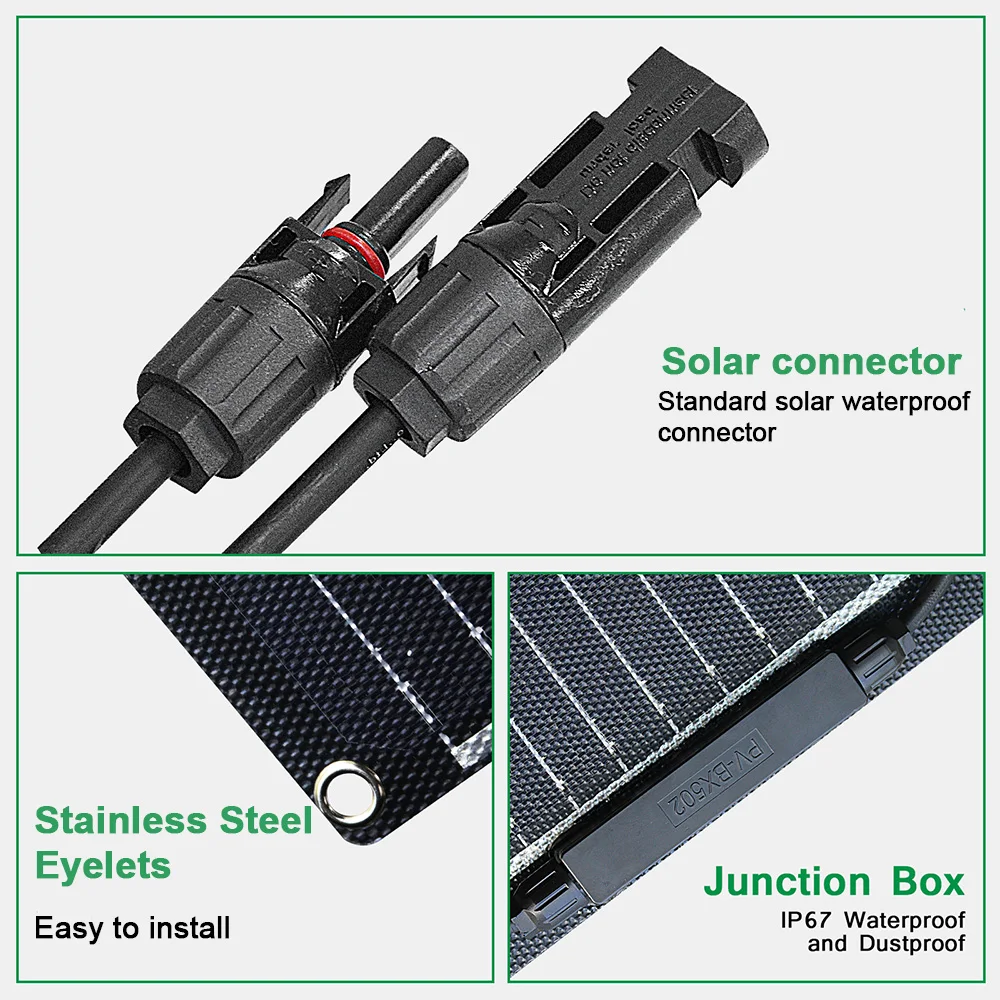

1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
200W solar panel system packing listing
2*100W solar panel
1 *2 in 1 adapter
1*12V/24V 20A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
100W solar panel system packing listing
1*100W solar panel
1*12V/24V 10A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
